These Splash & Dust IP Testing Chambers under the Weisstechnik and Votschtechnik brands are well designed and used world-wide for ingress protection testing.
Water Splash IP Test Chamber:
The water splash test chamber can perform IPX3 and IPX4 protection class tests according to DIN EN 60529 (VDE 0470-1). These spray and splash water test chambers come with swivel tubes with radii between 200 mm and 600 mm. It is possible to also get a swivel tube radius of 400 mm and 800 mm.
Optional equipment can be added for so that further standards can be complied with, including:
- ISO 20653, IPX1K to IPX6K, IPX9K
- DIN EN 60529, IPX1 to IPX6, IPX9
- SAE J 575
- JIS D 0203
- MIL STD 810
- EN 60068-2-18
- IEC 60598-1
Please note: The test chamber can only meet the applicable section of the standard.

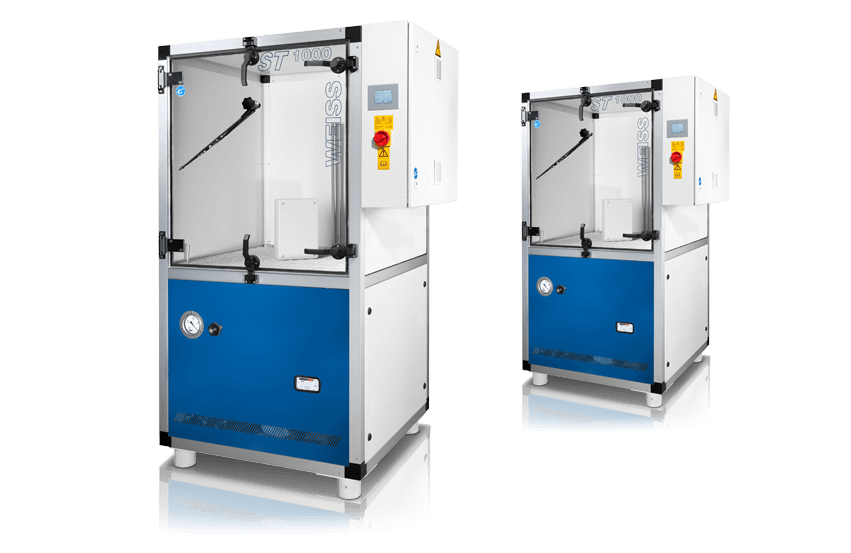

Dust IP Test Chambers:
The dust test chambers can carry out protection class tests according to DIN EN 60529 (VDE 0470-1) IP5X and IP6X.
The standard chambers are available in 1000 Litre and 2000 litre sizes.
Optional equipment can be added for so that further standards can be complied with, including:
- ISO 20653
- SAE J 575
- MIL STD 810
- EN 60068-2-68.
Please note: The test chamber can only meet the applicable section of the standard.
For information on pricing see our FAQ’s. If you would like to consult with us about splash and dust IP testing chambers for your application or any other queries you may have please call or email us, we are happy to help. Contact us
If you would like more information about DACTEC’s Service Support click here.
